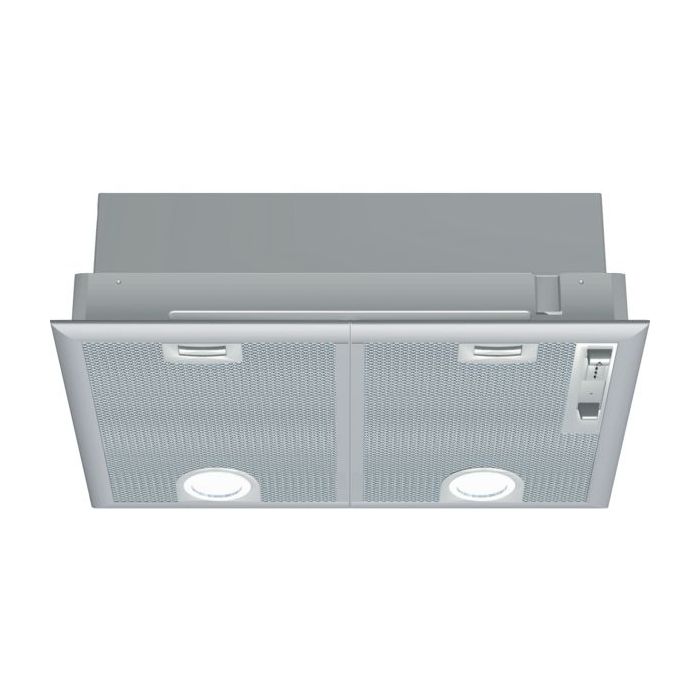

Neff D5655X1GB 53cm Canopy Hood
£249.00
Call for availability on 01580 753470
- ColourSilver
- Control TypeButton Control
- Freestanding / IntegratedIntegrated
- Width53cm
- Manufacturer Guarantee2 years
- EAN4242004237136
Neff D5655X1GB 53cm, 3 speeds + intensive, LED lights. Optional Recirculating kit: Z5155X0
Canopy hood: designed to fit neatly under an overhead unit or cabinet. They're discreet and effectively use valuable space.
Intensive speed setting: increases the extraction rate when the steam gets intense
LED Lighting – Clear illumination while you cook.
High extraction rate - for continuously clean air in the kitchen.
Reduced Noise: the low-noise motor makes it possible to listen to your own kitchen story
Canopy hood: designed to fit neatly under an overhead unit or cabinet. They're discreet and effectively use valuable space.
Intensive speed setting: increases the extraction rate when the steam gets intense
LED Lighting – Clear illumination while you cook.
High extraction rate - for continuously clean air in the kitchen.
Reduced Noise: the low-noise motor makes it possible to listen to your own kitchen story
TECHNICAL DATA
Product group Hood
Brand Neff
Product name/family
Product name / Commercial code D5655X1GB
Nominal power of the lighting system W_L (2009/125/EC) 6.6 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 248 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 438 lux
Internal article number D5655X1GB
EAN code 4242004237136
Main colour of product Silver metallic
Basic color of product N/A
Color body Silver metallic
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 147.5 W
Material chimney
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 335.1 m³/h
Material body Lacquered
Time increase factor f (2009/125/EC) 1.4
Typology Built-in/Built-under
Type of control mechanical
Construction type Built-in
Installation type Built-in
Type of control setting and signalling devices Slide switch
Front panel options N/A
Motor location Integrated motor in hood body
Operating Mode Convertible
Connection rating 206 W
Fuse protection 10 A
Voltage 220-240 V
Frequency 50 Hz
Length of electrical supply cord 130.0 cm
Plug type GB plug
Height of the appliance mm
Width of the appliance 530 mm
Depth of the product 380 mm
Height of the packed product 290 mm
Width of the packed product 580 mm
Depth of the packed product 430 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation 500 mm
Maximum width for installation 500 mm
Depth for installation 350 mm
Net weight 7.4 kg
Gross weight 8.4 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 255 mm
Minimum chimney height in mm (exhaust.) 255 mm
Maximum chimney height in mm (recirc.) 255 mm
Minimum chimney height in mm (recirc.) 255 mm
Energy efficiency rating C
Total annual energy consumption 79.8 kWh/a
Energy efficiency index (2010/30/EC) 80.0 %
Fluid Dynamic Efficiency (2010/30/EC) 15.7
Fluid Dynamic Efficiency class (2010/30/EC) D
Lighting efficiency (2010/30/EC) 66.4 lux/Watt
Lighting efficiency class (2010/30/EC) A
Grease filtering efficiency (2010/30/EC) 86.7 %
Grease filtering efficiency class (2010/30/EC) B
Maximum Air flow 363 m³/h
Minimum air flow 196 m³/h
Maximum Air flow 363 m³/h
Air flow boost (2010/30/EC) 618.0 m³/h
Sound power at max. speed (2010/30/EC) 56 dB
Sound power at min. speed (2010/30/EC) 38 dB
Power consumption in standby mode (2010/30/EC) W
Power consumption in off-mode - NEW (2010/30/EC) 0.00 W
Noise level 56 dB(A) re 1 pW
Noise level with boost position 68 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Communication technology
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No
Type of manual control devices Slide switch
Type of automatic control devices
Remote control No
Number of motors (Stck) 2
Total power of the motors 200 W
Maximum output air extraction 363 m³/h
Boost position air extraction 618 m³/h
Maximum output recirculating air 268 m³/h
Boost position output recirculating 395.0 m³/h
Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps 6 W
Total luminance 438 lux
Grease filter material Washable aluminium
Diameter of air outlet 120 / 150 mm
Grease filter type Kassette
No-return airflow flap No
Odour filter No
Number of speed settings
Type of lamps used
Included user manuals
Included accessories
Optional accessories Z5155X0, Z5552X0
Product image MCSA010923_D5655X0_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Business Value Class N 30
Sound power boost (2010/30/EC) 68 dB
Design Canopy- hoods
Delay Shut off modes min
Product group Hood
Brand Neff
Product name/family
Product name / Commercial code D5655X1GB
Nominal power of the lighting system W_L (2009/125/EC) 6.6 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 248 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 438 lux
Internal article number D5655X1GB
EAN code 4242004237136
Main colour of product Silver metallic
Basic color of product N/A
Color body Silver metallic
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 147.5 W
Material chimney
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 335.1 m³/h
Material body Lacquered
Time increase factor f (2009/125/EC) 1.4
Typology Built-in/Built-under
Type of control mechanical
Construction type Built-in
Installation type Built-in
Type of control setting and signalling devices Slide switch
Front panel options N/A
Motor location Integrated motor in hood body
Operating Mode Convertible
Connection rating 206 W
Fuse protection 10 A
Voltage 220-240 V
Frequency 50 Hz
Length of electrical supply cord 130.0 cm
Plug type GB plug
Height of the appliance mm
Width of the appliance 530 mm
Depth of the product 380 mm
Height of the packed product 290 mm
Width of the packed product 580 mm
Depth of the packed product 430 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation 500 mm
Maximum width for installation 500 mm
Depth for installation 350 mm
Net weight 7.4 kg
Gross weight 8.4 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 255 mm
Minimum chimney height in mm (exhaust.) 255 mm
Maximum chimney height in mm (recirc.) 255 mm
Minimum chimney height in mm (recirc.) 255 mm
Energy efficiency rating C
Total annual energy consumption 79.8 kWh/a
Energy efficiency index (2010/30/EC) 80.0 %
Fluid Dynamic Efficiency (2010/30/EC) 15.7
Fluid Dynamic Efficiency class (2010/30/EC) D
Lighting efficiency (2010/30/EC) 66.4 lux/Watt
Lighting efficiency class (2010/30/EC) A
Grease filtering efficiency (2010/30/EC) 86.7 %
Grease filtering efficiency class (2010/30/EC) B
Maximum Air flow 363 m³/h
Minimum air flow 196 m³/h
Maximum Air flow 363 m³/h
Air flow boost (2010/30/EC) 618.0 m³/h
Sound power at max. speed (2010/30/EC) 56 dB
Sound power at min. speed (2010/30/EC) 38 dB
Power consumption in standby mode (2010/30/EC) W
Power consumption in off-mode - NEW (2010/30/EC) 0.00 W
Noise level 56 dB(A) re 1 pW
Noise level with boost position 68 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Communication technology
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No
Type of manual control devices Slide switch
Type of automatic control devices
Remote control No
Number of motors (Stck) 2
Total power of the motors 200 W
Maximum output air extraction 363 m³/h
Boost position air extraction 618 m³/h
Maximum output recirculating air 268 m³/h
Boost position output recirculating 395.0 m³/h
Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps 6 W
Total luminance 438 lux
Grease filter material Washable aluminium
Diameter of air outlet 120 / 150 mm
Grease filter type Kassette
No-return airflow flap No
Odour filter No
Number of speed settings
Type of lamps used
Included user manuals
Included accessories
Optional accessories Z5155X0, Z5552X0
Product image MCSA010923_D5655X0_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Business Value Class N 30
Sound power boost (2010/30/EC) 68 dB
Design Canopy- hoods
Delay Shut off modes min
