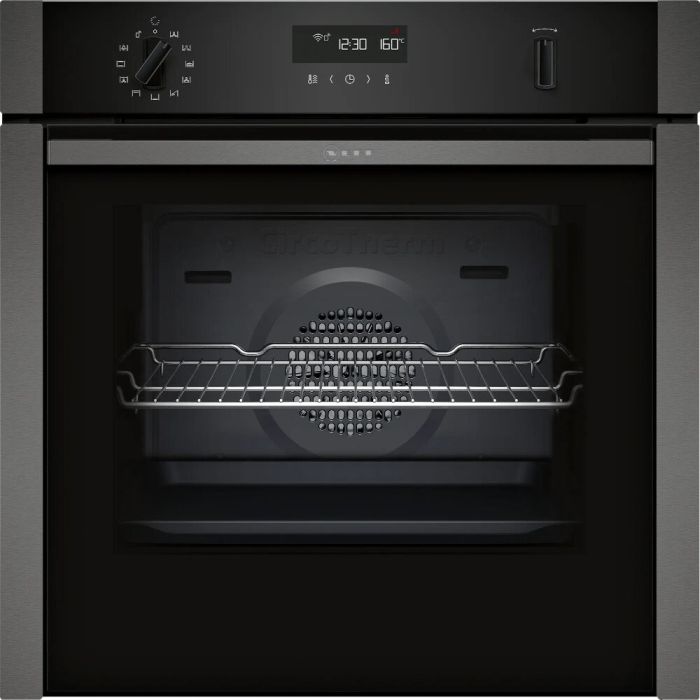

Neff B6ACH7HG0B Slide+Hide Pyrolytic Single oven

General
Where can the appliance be installed
Base cabinet, high cupboard installation

Are some hobs controls integrated
No

Main colour of product
Graphite-Grey

User interface
White LCD display with knob control

No. heating modes
8

Range of temperature (°C)
30-275 °C

Vario Steam - for baking and roasting
No

Integrated Cleaning system
Pyrolytic+Hydrolytic

Ease of access
Flexible clip rails - for easy access to your dishes on any level

Door hinge
retractable

Usable volume (of cavity) - NEW (2010/30/EC)
71 l

Energy efficiency rating
A

Safety device
childproof lock, door lock electronical, Residual heat indicator, Safety switch-off func oven

Included accessories
1 x universal pan, 2 x combination grid

Size and weight
Dimensions
595 x 594 x 548 mm

Minimum height for installation
585 mm

Maximum height for installation
595 mm

Minimum width for installation
560 mm

Maximum width for installation
568 mm

Depth for installation
550 mm

Net weight
40.0 kg

Size and weight

Plug type
no plug (electrical connection by electrician)

Length of electrical supply cord
120 cm

Voltage
220-240 V

Connection rating
2,990 W

Fuse protection
13 A

Comfort
Slide®
No

Hide® - the fully disappearing oven door
Hide®

The Hide® door retracts under the oven, so it's a cinch to test, taste and add a finishing touch.

Yes

Slide+Hide® - the fully disappearing oven door with rotating handle
Slide+Hide®

The Slide+Hide® door retracts under the oven and has an ergonomic handle for easy use.

No

Less time needed for preheating
Yes

Pizza setting
Yes

Connectivity
Home Connect
Yes

Home Connect Features
Remote Diagnostics, Remote Monitoring and Control

Power consumption standby/display on
1.0 W

Power consumption standby/display off
0.5 W

Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
2.0 W

Time auto-standby/display on
20.0 min

Time auto-standby/displ. off
20.0 min

Time auto-standby/network
20.0 min

Design
Graphite-Grey Edition

Elongated designed dials, Retractable control dials, Bevelled oval controls

Cavity inner surface: enamel grey

LCD-Display Control (white)

Electronic clock timer

Slide+Hide® with fixed handle

Bar handle

4 shelf positions

Features
Temperature proposal
Actual temperature display Heating up indicator Automatic start

Rapid heat

Interior halogen light, On/off button

Cooling fan

Stainless-steel fan

Info button

HomeConnect ready on WLAN

Door lock during pyrolytic cleaning
Control panel lock Automatic safety switch off Residual heat indicator Door contact switch

Cleaning
Pyrolytic cleaning

EasyClean

Full glass inner door

Programmes/functions
Oven with 8 cooking functions:, 8 cooking functions: heating methods: CircoTherm®, Top/bottom heat, Circo-roasting, Full surface grill, CircoTherm® intensive, Bread baking, Bottom heat, CircoTherm® gentle

Temperature range 30 °C - 275 °C

Accessories
1 Clip rail, Stop function

1 x universal pan, 2 x combination grid

Technical information
Cavity volume: 71 litre

120 cm Cable length

Nominal voltage: 220 - 240 V

Total connected load electric: 2.99 KW

Energy efficiency rating (acc. EU Nr. 65/2014): A
Energy consumption per cycle in conventional mode:1.04 kWh
Energy consumption per cycle in fan-forced convection mode:0.81 kWh
Number of cavities: Main cavity Heat source: electrical Cavity volume:71 litre

Performance/technical information
Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm

Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm

Please refer to the dimensions provided in the installation manual
