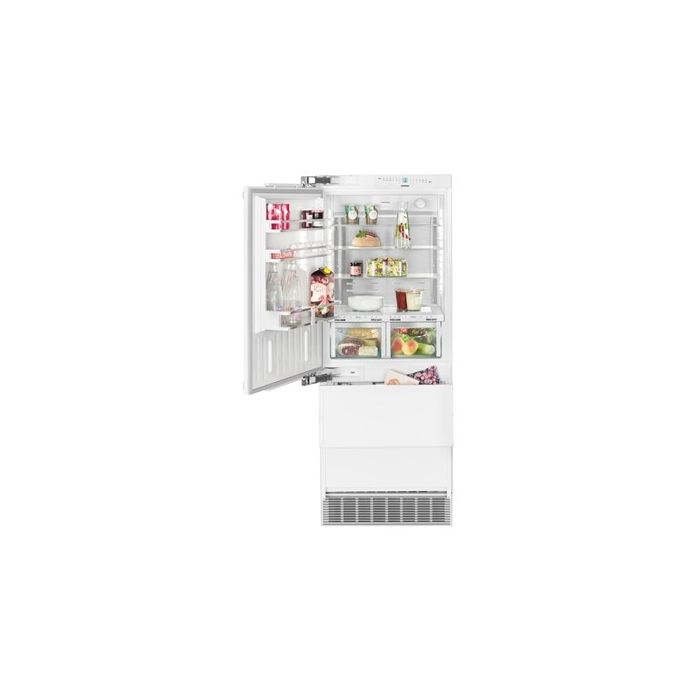

Liebherr ECBN5066 Integrated fridge freezer


Call for availability on 01580 753470

  • Control TypeTouch Control
  • Freestanding / IntegratedIntegrated
  • Freezer Compartments3
  • Fridge Shelves3
  • Height203cm
  • Width76.2cm
  • Manufacturer Guarantee2 years
  • EAN9005382233511
Integrated Fridge freezer

In the BioFresh compartments food retains its healthy vitamins, aroma and appetising appearance significantly longer than in a conventional fridge. Through its advanced technology the temperature is accurately kept at just above 0°C.

Accurate and independent temperature control of the fridge and freezer compartments is facilitated by DuoCooling: two separately adjustable cooling circuits. There is no air exchange between the fridge and freezer compartment, so that odours cannot be transferred and the stored food is prevented from drying out.

The plumbed-in IceMaker automatically keeps you topped up with the finest quality ice cubes so that you are prepared for every occasion. Whether you want some ice for a refreshing drink or for a big party with friends, with two generous drawers, the IceMaker will supply all the ice cubes you’ll need. Furthermore, it can be switched off at any time, as required

SuperFrost generates greater cold reserves so that freshly stored food can be frozen rapidly, in a vitamin-preserving manner. Reversion from the freezing temperature of -32°C to the normal freezer temperature is time or quantity-controlled to help save energy.

The NoFrost system from Liebherr provides rapid, fan-assisted, frost-free freezing for the safe, longterm storage of food. The NoFrost technology creates a much larger storage capacity and keeps the freezer constantly frost-free.

The child lock is programmed so as to prevent the appliance being inadvertently switched off.A symbol in the MagicEye indicates when the child lock is switched on.

Aperture dimensions height/width/depth 203.2 - 207.2 / 76.2 / 61.0 cm
Total volume 402 l
Type of installation Can be integrated
Door assembly Fixed door
Energy efficiency class F
Freshness technology BioFresh
Cooling technology NoFrost
Energy efficiency class F
Energy consumption per year 325.58 kWh/a
Climate class SN-T
Noise level 42 dB
Voltage 220-240 V ~
Frequency 50 Hz
Connection rating 1.5 A 194 W
Control and functions
Control Digital temperature display in the MagicEye
Control unit Touch
Malfunction: Warning signal optical and acoustical
Anzahl Temperaturzonen 3
Number of regulated refrigeration circuits 2
Child proofing ✔
Temperature display Fridge + freezing compartment
Refrigerator compartment
Adjustable temperature range, refrigerator compartment +3 °C to +9 °C
Freshness technology BioFresh
Number of BioFresh safes 2
extendible on telescopic rails ✔
with SoftTelescopic —
Interior light of BioFresh safe LED light
Defrosting method automatic
Forced air cooling ✔
Illumination cooling compartment LED light column, both sides
Number of storage shelves, refrigerator compartment 4
Of which separable 1
of which height-adjustable 3
Bottle rack 0
Number of can racks 2
VarioBox —
Egg tray —
Storage rack Storage rack with bottle and can holder
Freezer compartment
Temperature range freezer compartment -14°C to -28°C
Cooling technology NoFrost
Defrosting method automatic
Storage time during interruptions in power supply 16.00 h
Total freezing capacity 6.00 kg / 24h
No. of drawers in freezer compartment 2
Interior light, freezer compartment LED light
4-star freezer compartment ✔
IceMaker Fixed water connection
Ice cube production 0.80 kg / 24h
Ice cube storage 2.7 kg
Ice cube tray —
Star-coding 4
Design and materials
Dry rear panel ✔
Material dry back wall stainless steel
Design of inner door rack Premium GlassLine
Material door shelves Glass with stainless steel trim
Storage shelf material, refrigerator compartment Glass
Material of adjustable shelves in the freezer compartment Plastic
Door material Steel
Set-up and installation
Type of installation Can be integrated
Door assembly Fixed door
Door hinges Right replaceable
Door opening angle 115°
Height-adjustable feet 4
Levelling bars —
Ventilation Base ventilation
decor frame —
Aperture dimensions height/width/depth 203.2 - 207.2 / 76.2 / 61.0 cm
Height / Width / Depth (with packaging) 2,120.0 / 820.0 / 740.0 mm
Weight (without packaging) 148.00 kg
Weight (with packaging) 157.00 kg
Total volume 402 l
Volume, refrigerator compartments 277 l
of which BioFresh 62.1 l
Volume, freezer compartments 125 l
Of which 4-star compartment 124.6 l
More Information
Manufacturer Liebherr
GTIN 9005382233511
Grade -1
Model Number ECBN5066 - 001
Price £5,999.00
Freezer Compartments 3
Height 203cm
Width 76.2cm
Fridge Shelves 3
Control Type Touch Control
Energy Rating A++
Freestanding / Integrated Integrated
