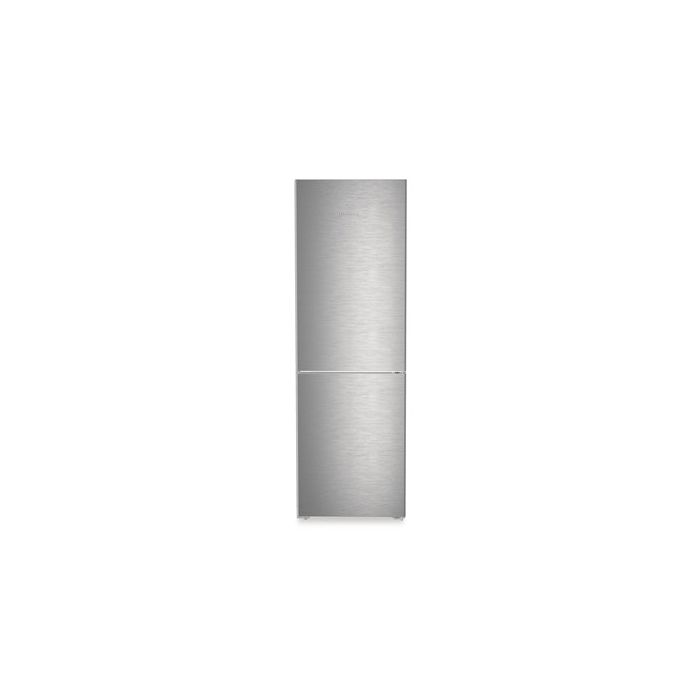

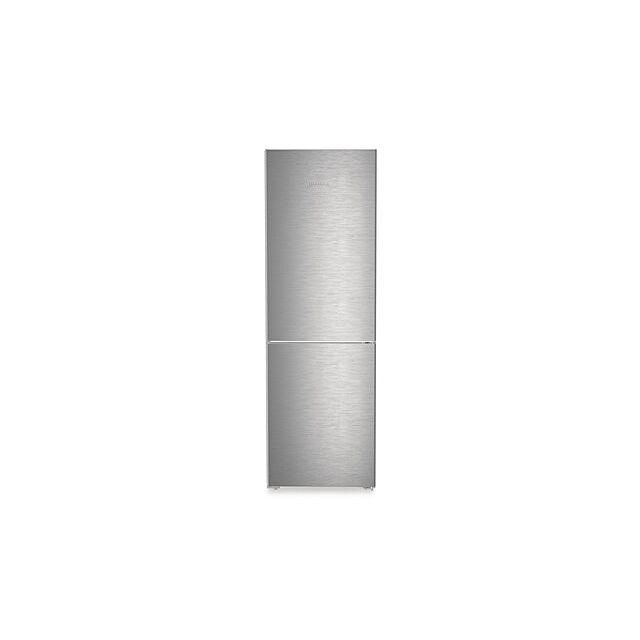

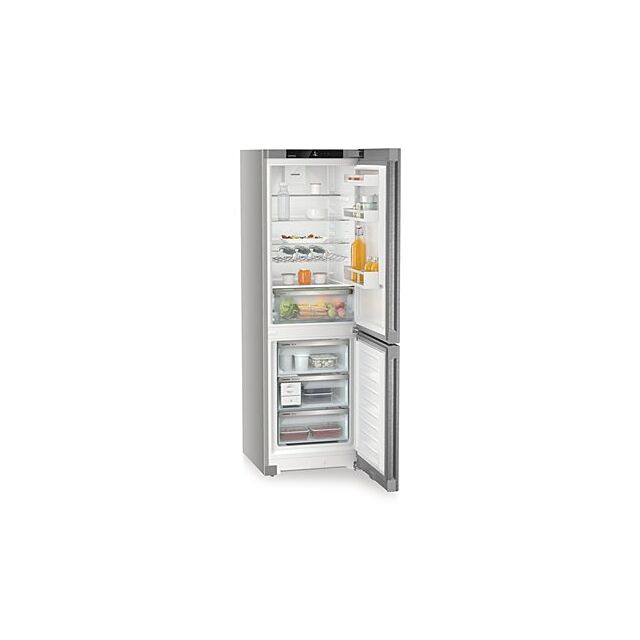

Liebherr CNSDB5223 Fridge Freezer

Model type Combined fridge-freezers with EasyFresh and NoFrost
GTIN 4016803126997
Series plus
Output and consumption

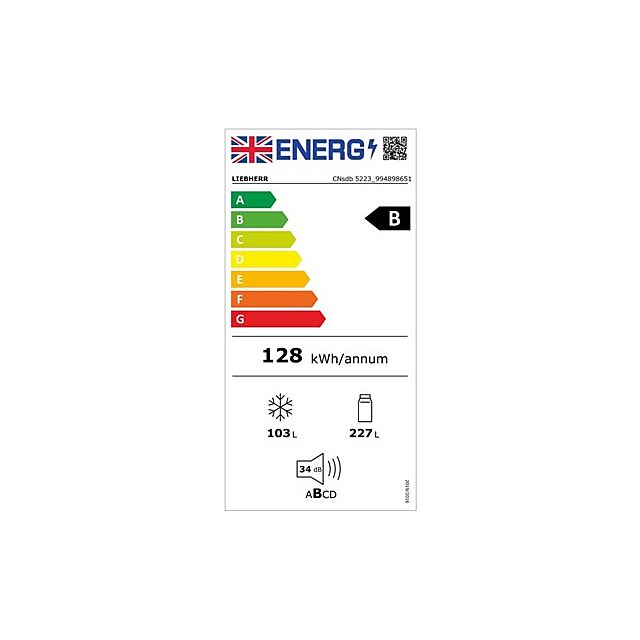

Energy efficiency class B
Energy consumption per year 128 kWh/a
Climate class SN-T
Noise level 34 dB
Connection rating 1.4 A 183 W
Voltage 220-240 V ~
Frequency 50-60 Hz
Refrigerant R 600a
Control and functions
Control Monochrome LC display , touch display
Number of temperature zones 2
Number of regulated refrigeration circuits 2
VarioTemp No
Temperature display Fridge & freezing compartment
SuperCool Adjustable on appliance and via app
SuperFrost Adjustable on appliance and via app
Door alarm, cooling Adjustable on appliance and via app
Door alarm, freezing Adjustable on appliance and via app
BottleTimer Adjustable on app
NightMode Adjustable on app
Display lock Adjustable on appliance
Control unit Touch
Connectivity solution * retrofittable
Refrigerator compartment
Adjustable temperature range, refrigerator compartment +2 °C to +9 °C
Moisture regulation DuoCooling
Refrigerator compartment climate zones EasyFresh
Defrosting method automatic
FreshAir filter in valve
Pull-out system drawer, refrigerator compartment Integrated drawer guide
Illumination cooling compartment LED ceiling lighting
Number of storage shelves, refrigerator compartment 4
of which height-adjustable 3
Of which separable 1
VarioSafe —
InfinitySpring —
Bottle storage Bottle rack
Bottle rack 1
Number of can racks 2
VarioBox —
VarioBoxes 0
Butter dish —
Egg tray 10 eggs
Number of FlexSystems 0
Type of door rack Cooling compartment Bottle and can rack
Height-adjustable inner door shelf Gradual adjustment
Freezer compartment
Temperature range freezer compartment -15 °C to -26 °C
Cooling technology NoFrost
Freezer compartment position Bottom
Defrosting method automatic
Freezing capacity in 24 hours according to GS ** 10.00 kg / 24h
No. of drawers in freezer compartment 3
of which on telescopic rails 0
FrostSafe Drawers closed on all sides with transparent front
Drawer pull-out system, freezer compartment Drawer on safety glass
Interior light, freezer compartment —
4-star freezer compartment door —
VarioSpace ✔
IceMaker No
IceMaker safe lighting —
EasyTwist-Ice Yes
Ice cube tray —
Number of ice cube trays 0
Number of water filters 0
Number of cold storage accumulators 0
Freezer tray 0
Star-rating 4
Storage time in case of fault according to GS ** 20 h
Design and materials
InteriorFit ✔
Dry rear panel —
Material dry back wall —
Inner door décor —
Material inner door rack Plastic
Storage shelf material, refrigerator compartment Glass
Material of adjustable shelves in the freezer compartment Glass
Colour Silver
Side wall material steel
Handle Recessed grip (both sides, vertical, continuous)
Set-up and installation
Closing aid ✔
Door hinges Right reversible
Door hinge replacement Possible for customer
Door opening angle 115°
Door seal Replaceable
Height-adjustable feet 2
Transport handles Front and rear
Transport castors at back ✔
Ventilation Front ventilation
Connector cable (length) 2,000 mm
Specifications
Exterior dimensions: height/width/depth 185.5 / 59.7 / 67.5 cm
Height / Width / Depth (with packaging) 1,927.0 / 615.0 / 767.0 mm
Weight (without packaging) 74.5 kg
Weight (with packaging) 80 kg
Total volume *** 330 l
Volume, refrigerator compartments 227 l
Volume, freezer compartments 103 l
Of which 4-star compartment 103.1 l
