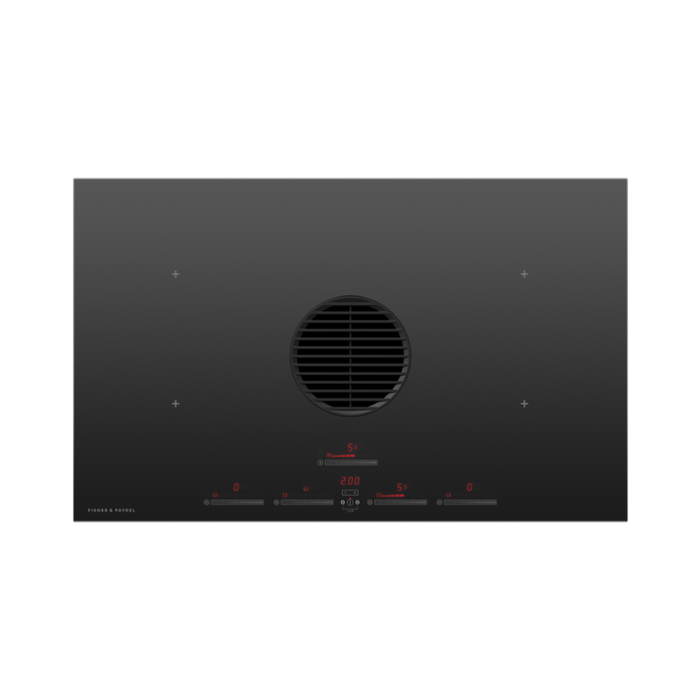

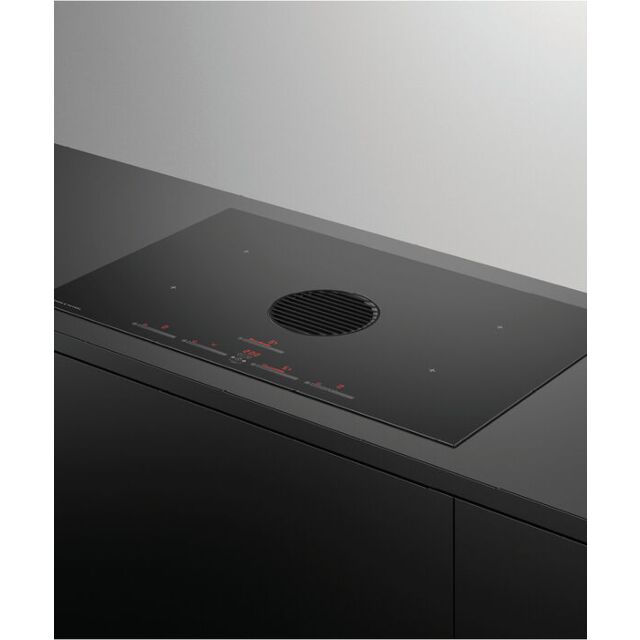

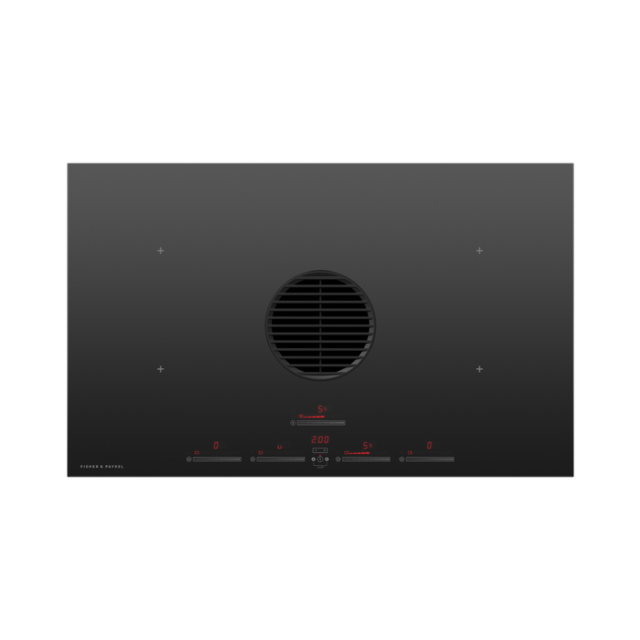

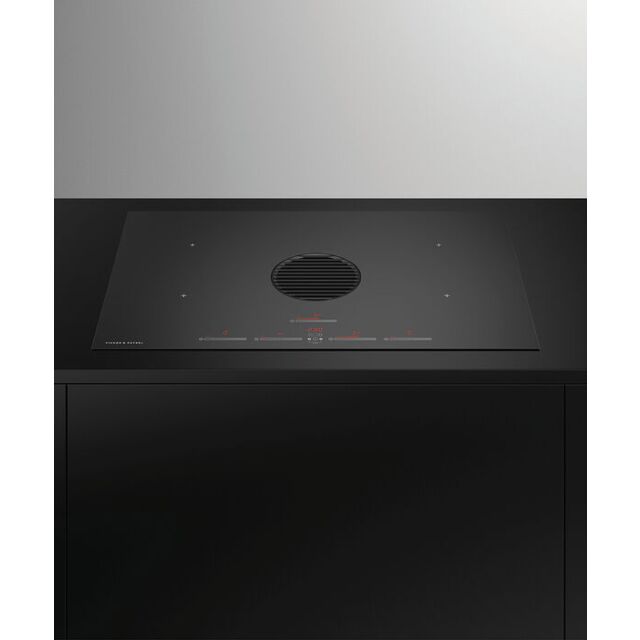

Fisher & Paykel CID834DTB4 83cm Induction Vented Hob
£2,890.00
Call for availability on 01580 753470
- Control TypeTouch Control
- Freestanding / IntegratedIntegrated
- Hob FeaturesIntegrated Extractor
- Width83cm
- Zones4
- Manufacturer Guarantee5 years
- EAN9415112822289
Fisher And Paykel CID834DTB4
Ducted out version.
830mm Wide Induction Downdraft Vented 'Touch + Slide Control' Frameless
Induction Hob, 83cm, 4 Zones with Integrated Ventilation
Seamless kitchen integration, without the need for overhead ventilation
Four cooking zones, including simple pairing of two zones to create a SmartZone
With nine fan speeds plus boost, select the perfect extraction rate for your cooking
Minimal style, sleek black glass finish to suit any kitchen design
Height
217mm
Width
830mm
Depth
515mm
Ducted out version.
830mm Wide Induction Downdraft Vented 'Touch + Slide Control' Frameless
Induction Hob, 83cm, 4 Zones with Integrated Ventilation
Seamless kitchen integration, without the need for overhead ventilation
Four cooking zones, including simple pairing of two zones to create a SmartZone
With nine fan speeds plus boost, select the perfect extraction rate for your cooking
Minimal style, sleek black glass finish to suit any kitchen design
Height
217mm
Width
830mm
Depth
515mm
ACCESSORIES
Recirculation kit 82236 KRCID834 (optional)
Replacement recirculation filter 50182 FRO-DD (optional)
Square grille + butterfly valve for wall exhaust 82393 DO-G-SS (optional)
CLEANING
Dishwasher safe grease filter
Flat easy clean glass surface
Flush grille
Pan detection system
CONTROLS
Auto cut-off timer for each zone
Minute timer
Soft-touch electronic controls
Touch and slide controls
DOWNDRAFT PERFORMANCE
Air outlet size 220mm W x 90 mm H
Air speeds 9 + boost
Ducted externally
Ducting direction Side, Rear
Maximum air flow (Boost) 660m³/hr
Maximum air flow (Level 9) 623m³/hr
Maximum noise level (Boost) 70dBA
Maximum noise level (Level 9) 69dBA
Minimum air flow 192m³/hr
Minimum noise level 38dBA
Motor type
DUCTING ACCESSORIES (OPTIONAL)
Duct 1m Connector 222x89 82389 D1-C-222-89
Ducting adaptor 82392 DA-219-98-150
Elbow 90° horizontal 222x89 82390 E90-H-222-89
Elbow 90° vertical 222x89 82391 E90-V-222-89
PERFORMANCE
Gentle heat
Heat settings 9
Induction cooking technology
Pause function
PowerBoost
SmartZone
POWER REQUIREMENTS
Amperage 32A
Electrical connection Terminal block
Maximum power 7.4kW
Supply frequency 60Hz
Supply voltage 220 - 240V
PRODUCT DIMENSIONS
Depth 515mm
Height 217mm
Width 830mm
SAFETY
Keylock
Pan detection system
Safety time out
Surface hot indicators
WARRANTY
Parts and labour 5 years
ZONE RATINGS
Left front 2100W
Left front zone (PowerBoost set) 3000W
Left rear 2100W
Left rear zone (PowerBoost set) 3000W
Right front 2100W
Right front zone (PowerBoost set) 3000W
Right rear 2100W
Right rear zone (PowerBoost set) 3000W
SmartZone 3700W
ZONES
Number of elements 4
Recirculation kit 82236 KRCID834 (optional)
Replacement recirculation filter 50182 FRO-DD (optional)
Square grille + butterfly valve for wall exhaust 82393 DO-G-SS (optional)
CLEANING
Dishwasher safe grease filter
Flat easy clean glass surface
Flush grille
Pan detection system
CONTROLS
Auto cut-off timer for each zone
Minute timer
Soft-touch electronic controls
Touch and slide controls
DOWNDRAFT PERFORMANCE
Air outlet size 220mm W x 90 mm H
Air speeds 9 + boost
Ducted externally
Ducting direction Side, Rear
Maximum air flow (Boost) 660m³/hr
Maximum air flow (Level 9) 623m³/hr
Maximum noise level (Boost) 70dBA
Maximum noise level (Level 9) 69dBA
Minimum air flow 192m³/hr
Minimum noise level 38dBA
Motor type
DUCTING ACCESSORIES (OPTIONAL)
Duct 1m Connector 222x89 82389 D1-C-222-89
Ducting adaptor 82392 DA-219-98-150
Elbow 90° horizontal 222x89 82390 E90-H-222-89
Elbow 90° vertical 222x89 82391 E90-V-222-89
PERFORMANCE
Gentle heat
Heat settings 9
Induction cooking technology
Pause function
PowerBoost
SmartZone
POWER REQUIREMENTS
Amperage 32A
Electrical connection Terminal block
Maximum power 7.4kW
Supply frequency 60Hz
Supply voltage 220 - 240V
PRODUCT DIMENSIONS
Depth 515mm
Height 217mm
Width 830mm
SAFETY
Keylock
Pan detection system
Safety time out
Surface hot indicators
WARRANTY
Parts and labour 5 years
ZONE RATINGS
Left front 2100W
Left front zone (PowerBoost set) 3000W
Left rear 2100W
Left rear zone (PowerBoost set) 3000W
Right front 2100W
Right front zone (PowerBoost set) 3000W
Right rear 2100W
Right rear zone (PowerBoost set) 3000W
SmartZone 3700W
ZONES
Number of elements 4
| Manufacturer | Fisher And Paykel |
|---|---|
| GTIN | 9415112822289 |
| Model Number | CID834DTB4 |
| Hob Features | Integrated Extractor |
| Zones | 4 |
| Width | 83cm |
| Control Type | Touch Control |
| Freestanding / Integrated | Integrated |
